How to hit-air
How to hit-air
The jacket with the Hit-air (Shock–buffering Protection System) is to be worn as an
outerwear when riding a motorcycle.
![](https://www.hit-air.com/archives/005/201807/c61f2a2412d9ac40f53d92092d0ce142.jpg)
Onr-touch release
![](https://www.hit-air.com/archives/005/201807/be82b887d69c5f31de880f200be8b0e1.jpg)
![](https://www.hit-air.com/archives/005/201807/cc4c42e09e88d81562a639e4f8b2e600.jpg)
Re-assembling Hit-Air
Hit-air can be re-used repeatedly.
Unless it is damaged by the previous activation, it can be re-used byre placing the CO2 cartridge.
* Do not reuse the gas cartridge once used.
A CO2 cartridge with a hole at its bottom is unusable.
Key Box
The key ball requires considerable strength(30-35kg) to be pulled out and will not be released easily because of the elastic nature of the coiled wire , thus the Hit-Air will not inflate under normally anticipated riding conditions including standing on pegs.
![キーボールの張力](https://www.hit-air.com/archives/005/201807/55304ba9ff35e68b6ee36273b89aaae5.jpg)

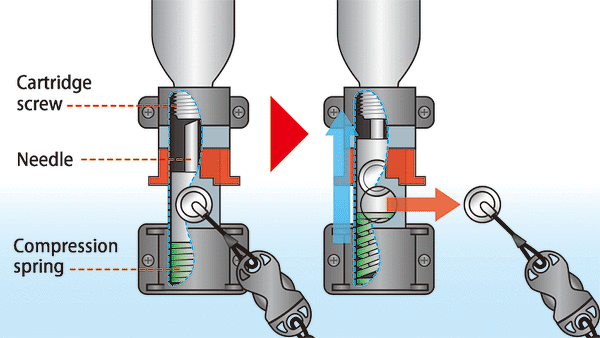

The key ball holds a compression spring and an interlocking needle in the key box.
When the system is activated, the key ball comes out of the key box and a needle in the key box is released and punctures the seal of the gas cartridge to inflate the Hit Air immediately.
![](https://www.hit-air.com/archives/005/201807/0a28e96171e8e24537f2e8775506be61.jpg)
![](https://www.hit-air.com/archives/005/201807/aa325ca407684dfa68b46276eb25e235.jpg)

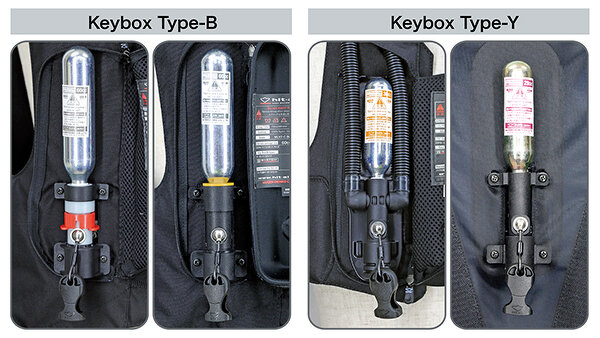

Y-type are small size and a lightweight key box.
